TapBoost

Single Outlet Booster Pump

TapBoost provides an easy to install, quiet, cost-effective solution when a tap, toilet, dishwasher or washing machine suffers with poor water flow. Suitable for mains and gravity fed systems, TapBoost will boost the water flow to a single outlet to between 7 – 11 l/min depending on the incoming flow.

Taps

Combination Boiler

Unvented Cylinder (cold only)

Where to buy

Features

Suitable for a hot or cold single outlet

Boost a tap, dishwasher, washing machine or toilet.

Very quiet in operation

TapBoost operates at just 34.2dBA.

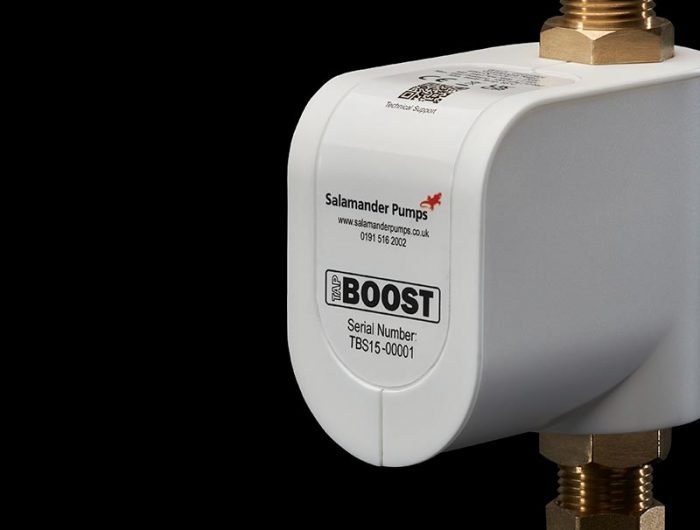

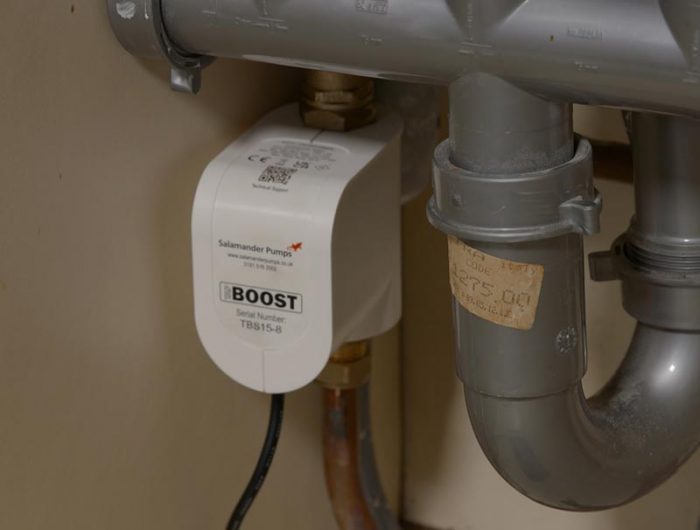

Easy installation

A compact and inline design makes installation as easy as possible.

Warranty

2 years warranty.

Compatability

A person about to fill up a black kettle using the kitchen tap

TapBoost is suitable for a single outlet in a mains or gravity fed system.

Toilet

Wash basin

Washing machine

Dishwasher

Instant electric shower

Drench shower head

Multi-function shower head

Body jets

Technical Details

TapBoost

General

Part Number	TBS15
Warranty	2 Years

Noise Rating

dBA

34.2

Pump Specification

Maximum inlet water pressure	10 Bar/1000 kPa
Minimum flow rate for activation	1.2 lpm
Backflow protection	Integrated non-return valve
Pump inlet connection	15mm compression
Pump outlet connection	1/2” male BSP
Pump enclosure protection	IPX4
Pump weight	0.6 Kg
Motor duty rating	Continuous
Boosted output flow rate	7 - 11 lpm (varies depending on incoming flow rate)
Water temperature	4°C - 60°C
Maximum head	5m (0.5 bar)
Full load current	1.5 A
Maximum pump wattage	18 W
Pump dimensions (mm)	95mm(L) x 53mm(W) x 124mm(H)
Fuse Rating	3A

Power Supply Transformer

Model number	GT-46600-6012-T2
Model number	EA10682G-120
Electrical input	AC 100-240 Volts, 50/60Hz, 1.5A
	AC 100-240 Volts, 50/60Hz, 2.0A
Electrical output	DC 12 Volts, 60W, 5.0A
	DC 12 Volts, 50W, 4.16A
Mains power cable	UK 3 pin plug fitted with 3A fuse
Transformer enclosure protection	IPX0 - must be protected from water and moisture
Power supply weight	0.4 Kg
Power supply dimensions (mm)	145mm(L) x 52mm(W) x 34mm(H)

Actual values may vary due to tolerances

Downloads

View all

Brochure

MainsBooster range brochure

Installation Guide

TapBoost installation guide

Flow Rate Graph

Explains the flow rates delivered by TapBoost

FAQS

View all

What applications can I use TapBoost for?

Despite its name, TapBoost can be used for various poorly performing outlets. Examples include (but are not limited to) toilet cisterns, kitchen appliances and some electric showers (please refer to the *installation manual* for more info regarding the limitations when it comes to electric showers).

Can TapBoost be used to boost multiple outlets?

TapBoost is not suitable for boosting multiple outlets.

If multiple outlets suffer with poor performance in a mains-fed system a larger inline pump or accumulator tank should be installed – click here to view our full MainsBooster range.

When more than one outlet suffers with poor water performance in a gravity-fed system then a bathroom or whole house pump should be installed – click here to view our full GravityBooster range.

Can I install TapBoost in a bathroom?

Yes. TapBoost can be installed in certain zones within a bathroom, however the plug/power supply must be outside of the bathroom and the installation must adhere to the latest I.E.E. electrical regulations. Refer to the installation manual for more information.

Is TapBoost pump suitable for boosting the water to an electric shower?

Yes, however there must be sufficient natural flow/pressure to allow the electric shower to operate before installing a TapBoost. Please note, many electric showers are restrictive by their nature, and you should check with your electric shower manufacturer to see if the maximum flow rate from the shower is already being achieved.

Can TapBoost be installed on a lead main?

TapBoost should never be installed to restrictive or collapsed pipework or supply, such as a lead main.

Can TapBoost be installed on a shared main?

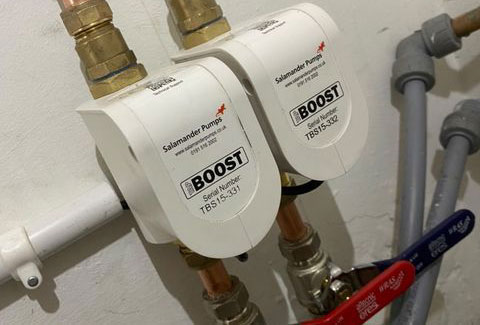

TapBoost can be installed on a shared main provided that it is only being used to boost a single outlet within one property, as highlighted by the typical installations image.

Can TapBoost be used in mains-fed systems such as combination boilers or unvented systems?

TapBoost can be installed in combi boiler systems to boost either a hot or cold outlet.

TapBoost cannot be installed on hot water pipes/outlets from an unvented system – TapBoost should only be fitted to a cold-water outlet in unvented systems.

There must be a minimum natural flow of 1.2 L/min from any outlet to be boosted.

Can TapBoost be used in gravity-fed systems?

TapBoost can be installed on a hot or cold outlet in a gravity-fed system. However, there must be a minimum natural flow of 1.2 L/min from the outlet to be boosted.

Can TapBoost be used for drinking (potable) water?

Yes, TapBoost can be used to boost outlets providing drinking water such as kitchen taps.
